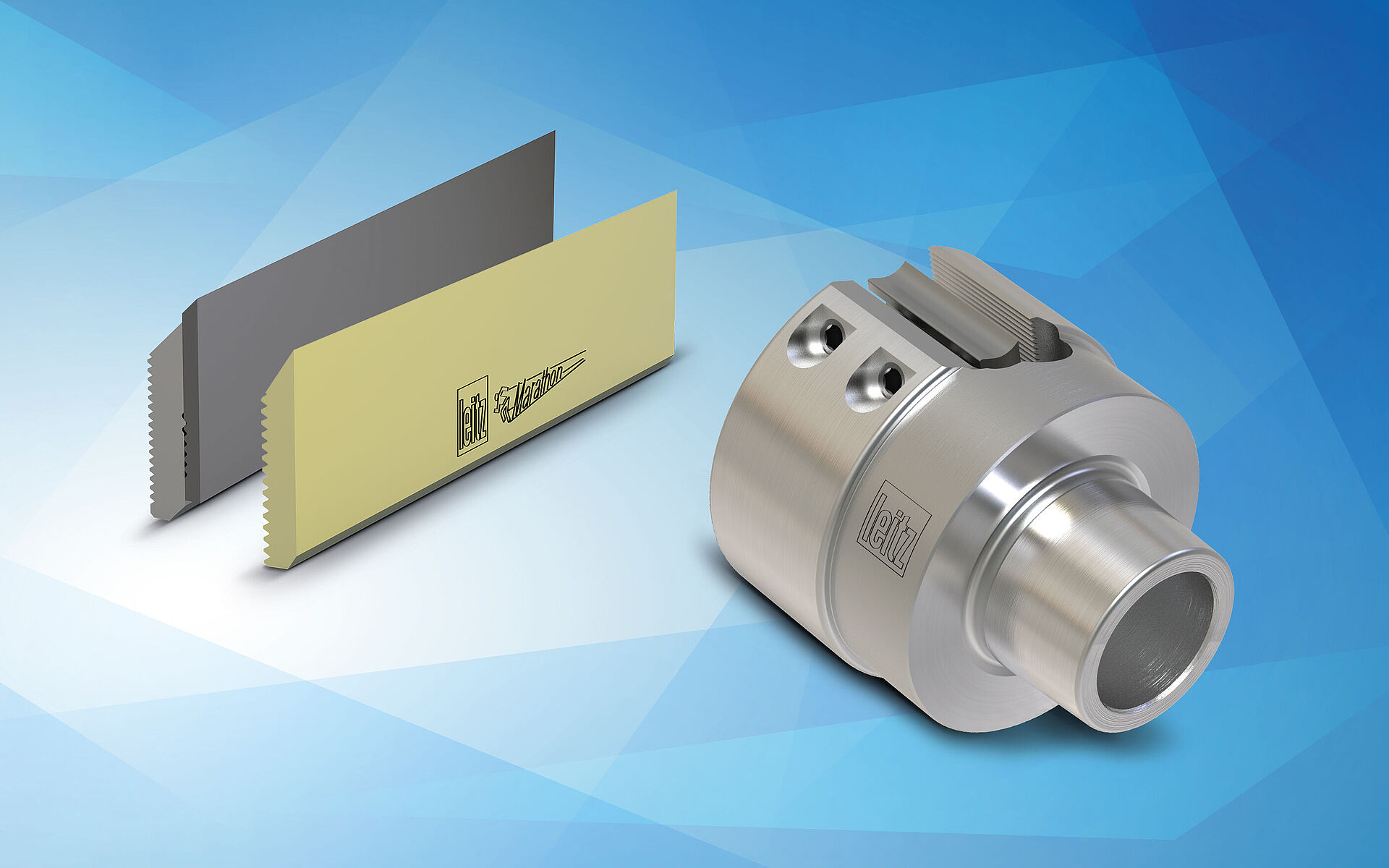

Leitz Planing/profiling cutterhead with back-serrated blank knives

The highly flexible tool available at short notice for any application

During the profiling process, profile changes can result in longer tool procurement times. In addition, changing materials and different customer requirements demand a certain flexibility in the design of the profiles. With the profile cutterhead for backserrated blanks, Leitz offers a tool for machining any profile using standard tool bodies and individually profiled blanks. By mounting straight knives, the tool can also be used for planing.

0 %
Flexibility due to customer-specific profiles
0 -fold
Lifetime (max.) due to MC-high performance coating in comparison to uncoated HS planing knives
YOUR BENEFITS
  • Short-term availability of individual profiling tools
  • Profiling and sharpening of the blank knives is possible on site
  • Excellent finish quality



AT A GLANCE
  • For standard 8 mm blanks (HS or MC) as well as for HW blanks with support plate (PKS)
  • With bore, hydro clamping or HSK 85 WS adaptor
  • Blank knives can be resharpened many times
  • Suitable for all conventional planing and profiling machines
  • For processing soft and hard woods, MDF, thermoplastic plastics and chipboard
  • Cutterheads are available from stock, blanks can be profiled on site



Your benefits due to ...

Flexibility

Adaptable and individual

  • Short-term profile change possible due to the possibility of profiling the standard blanks on site
  • Vast array of design possibilities due to a multitude of different standard blank dimensions
  • The right cutting substrate for different workpiece materials

Quality

Perfect finish quality

  • Excellent finish quality; knives ground in the cutterhead achieving perfect running accuracy
  • Balanced due to the knife weight tolerance

Productivity

Better tool life and reduced machine downtime

  • Optimal tool life by using the ideal workpiece cutting materials
  • Less tool changing through long lifetime

Downloads

pdf
Planing/profiling cutterhead with back-serrated blank knives
Type: Product information
Category: Planing and profiling
