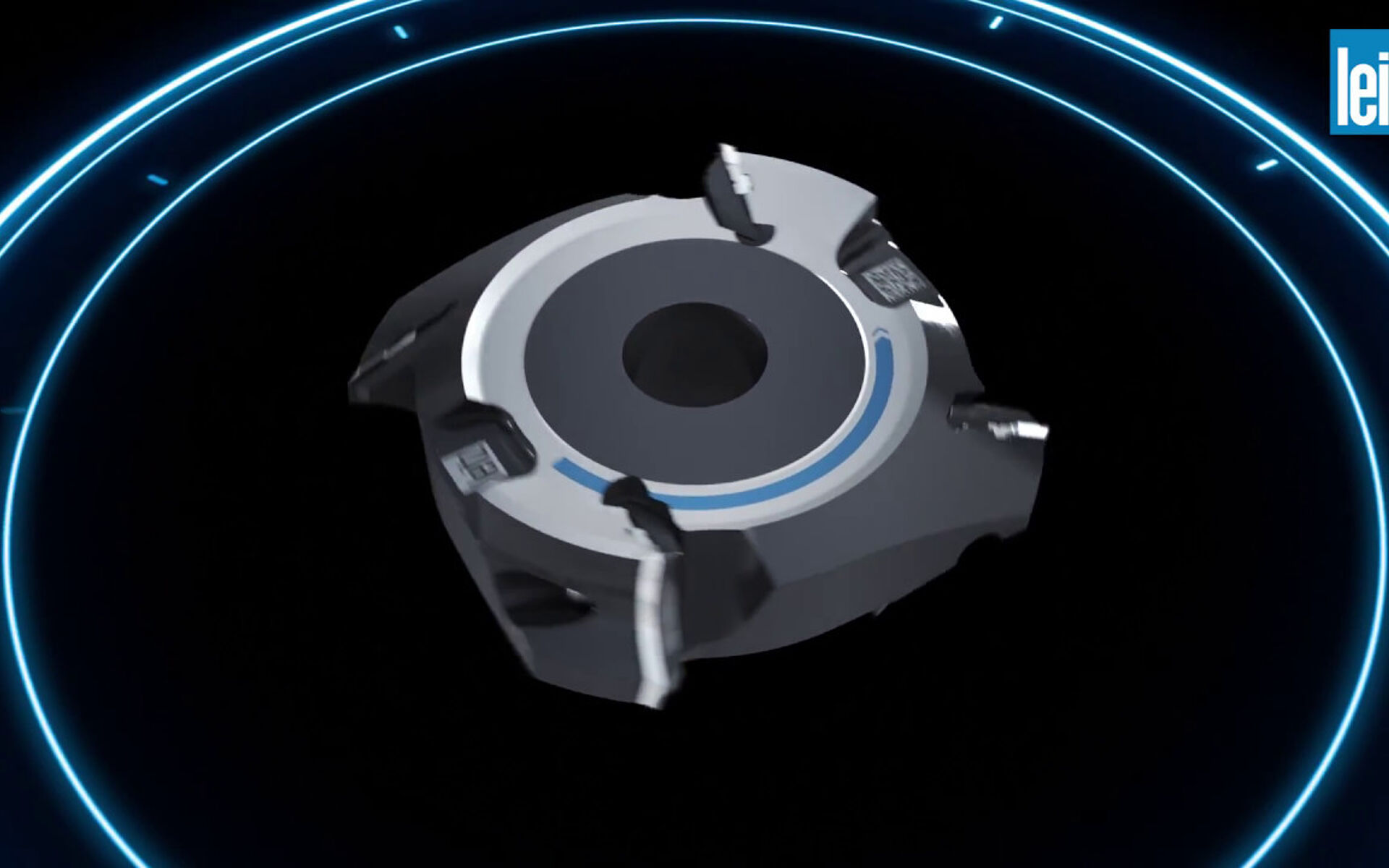

Leitz ProfilCut Q Diamond

The specialist for very abrasive materials

Abrasive materials or composite materials are not easy to machine due to their properties. Tool and cutting materials wear quickly, which in turn increases production costs. With the unique combination of an ultra-light aluminium tool body and resharpenable, profile and diameterconstant diamond changing knives, ProfilCut Q Diamond ensures efficient machining of abrasive materials. Precise and without loss of performance.

0 times
Longer tool life in comparison to that of TC tools
0 %
Less costs per running meter in comparison to those of TC disposable systems
0 %
Shorter machining time through increase of cutting speed
YOUR BENEFITS
  • Long lifetime

  • Constant profile and diameter after sharpening

  • Lightweight construction for high-speed applications

  • Minimal set-up times

  • Easy handling



AT A GLANCE
  • For cutting speeds (vc) up to 120 m/s

  • Includes Data Matrix Code or RFID chip for networked communication

  • 5 times resharpenable

  • Especially suitable for systems with high part output

  • Preferably used in wood derived materials, plastics, aluminium as well as fibre or layered composites



Your benefits due to ...

Productivity & Efficiency

More parts in less time and with less effort

  • 20 times longer tool life through diamond cutting edges compared to TC

  • Reduce tool costs through six tool lives per knife

  • 50 % higher feed rate by increasing the cutting speed to 120 m/s

  • Shorter set-up times through automatic knife positioning without setting devices

  • Reduced maintenance effort and machine downtime through higher life times

  • Maximum cost efficiency through the flexible use of disposable or resharpenable constant diameter systems

Reliability

Constant machining quality and user-friendliness

  • Profile and diameter constant after sharpening

  • Perfect precision repeatability after each knife service through precise, automatic knife clamping

  • Knives can be changed in the assembled tool set

Quality

Maximum machining quality during the entire life cycle

  • Perfect finish quality due to low vibration lightweight construction

  • Optimally matched TC grades can be combined with diamond
