The Leitz Tooling That Powers Every Stage

Manufacturing high-performance timber windows isn’t just about great design, it’s about precision at every stage of production.

From rough stock preparation through to profiling, drilling and final detailing, each machining step plays a critical role in the strength, finish and long-term performance of the window. That’s where the right tooling makes all the difference.

Here’s some Leitz tooling highlights that support the full timber window manufacturing process:

Stage 1: Surface Preparation – Getting the Foundation Right

VariPlan and CentroPlan Planing Cutterhead

Every quality window begins with perfectly prepared timber. Before profiles are cut or joints are formed, components need smooth, consistent surfaces that are dimensionally accurate and ready for further machining.

The VariPlan and CentroPlan planing cutterhead delivers outstanding surface finish with simple handling and reliable performance. The turnblade system helps maintain consistent quality while reducing downtime and extending tool life.

For window manufacturers, that means:

Improved cycle times
Finish quality surfaces from the start
Reduced rework
Lower tooling costs over time
A sustainable approach through replaceable cutting edges
Leitz RipTec Technology

When your surface prep is right, everything that follows becomes easier.

Stage 2: Precision Profiling – Where the Window Takes Shape

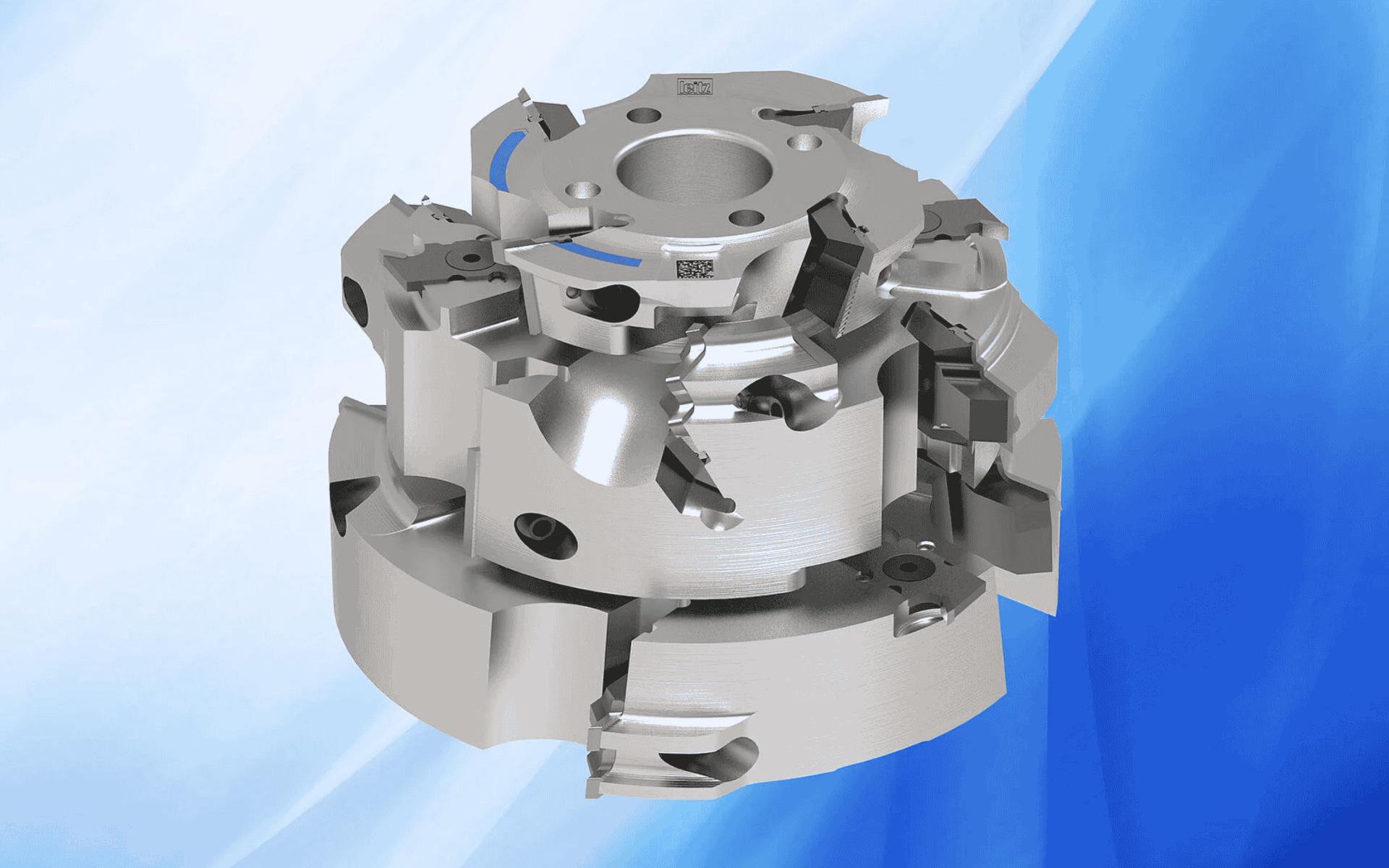

ProfilCut Q System Group

This is where timber transforms into a window frame.

At the heart of precision profiling is the ProfilCut Q System Group, a multifunctional and highly flexible profile tooling system designed to deliver perfectly shaped profiles with minimal setup time. Its modular design allows the combination of exchangeable knives, resharpenable constant diameter systems and a selection of carbide or diamond cutting edges.

The modular system allows manufacturers to adapt to different window designs while maintaining constant diameter and high repeat accuracy.

In practical terms, ProfilCut Q delivers:

High speed machining
Clean, accurate profiles
Fast setup times
Reliable repeatability across production runs
Long tool life with carbide or diamond cutting edges

Whether producing traditional timber windows or modern performance systems, profiling accuracy directly impacts sealing performance, hardware fit and overall finish. ProfilCut Q is the cornerstone of high-quality window production tooling.

Stage 3: Drilling for Strength and Assembly

Marathon Twist Drill

Strong windows rely on strong joints. Dowel holes and deep drilling operations must be precise and consistent to ensure structural integrity.

The Marathon twist drill is engineered for efficient chip evacuation and high feed rates, making it ideal for deep hole drilling in timber components. The solid carbide construction and Marathon coating provide durability in demanding production environments.

For manufacturers, that means:

Cleaner holes
Faster cycle times
Reduced tool changes
Consistent joint quality

Reliable drilling equals reliable assembly and reliable windows.

Stage 4: Mortising and Detail Routing

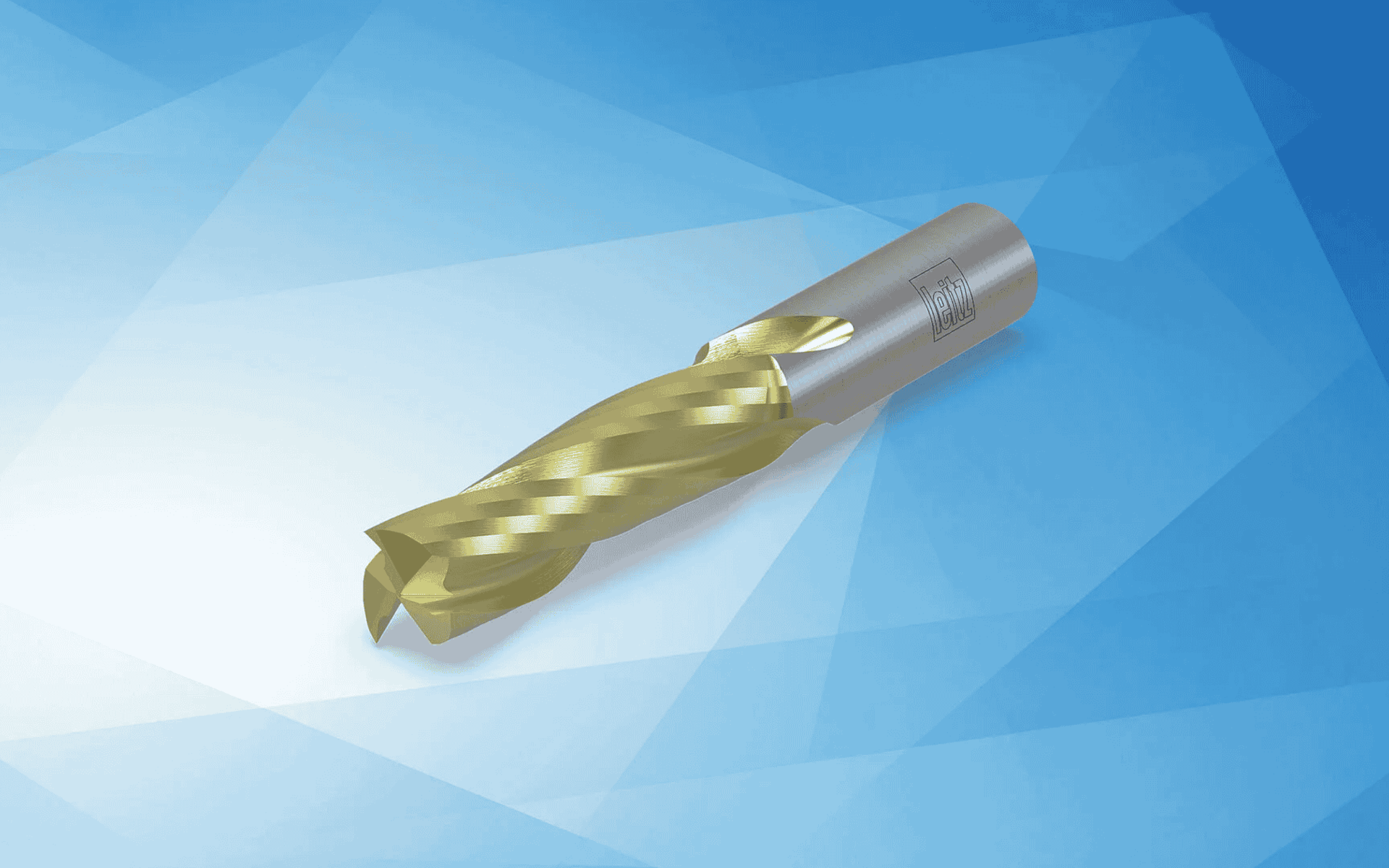

Marathon Spiral Roughing & Finishing Router

Mortise slots, hardware recesses and detailed routing require both precision and smooth cutting action.

The Marathon spiral roughing and finishing router cutter combines solid carbide strength with advanced coating technology to deliver high feed capability and excellent surface finish.

It’s ideal for:

Mortise slot production
Deep milling operations
Clean edge finishing
Reduced vibration and smoother machining

The result? Components that fit accurately, assemble efficiently and maintain the high-quality standard customers expect from timber windows.

Supporting Sustainable Window Manufacturing

Timber windows are already a strong choice for environmentally conscious construction. At Leitz, tooling design supports that sustainability focus through:
